NodeRed Script Holzverbrauch

Master67

Wie im Video unseres Sakaschi gezeigt die Mathematischen Formel zur Berechnung des Holzverbrauches eines Kaminofens, meines Kaminofens!
Normalerweise Berechnet man den Holzvorrat- und Verbrauch in Raummetern, Steigmeter oder Schüttmeter, für mich war es aber einfachen in m² zu berechen.
Unsere Boxen haben unterschiedliche Größen, drei sind 1,49m x 1,40m und ich bekomme drei Reihen Holz rein, zwei Boxen sind 2,10m x 1,80m und auch hier bekomme ich
drei Reihen Holz rein.
Wir verbrauchen einen gut gefüllten "Waschkorb", als ca. 0,26m² Holz pro Tag, und das ist das Note Red Script dazu, inkl. "Alexa" Ansage.

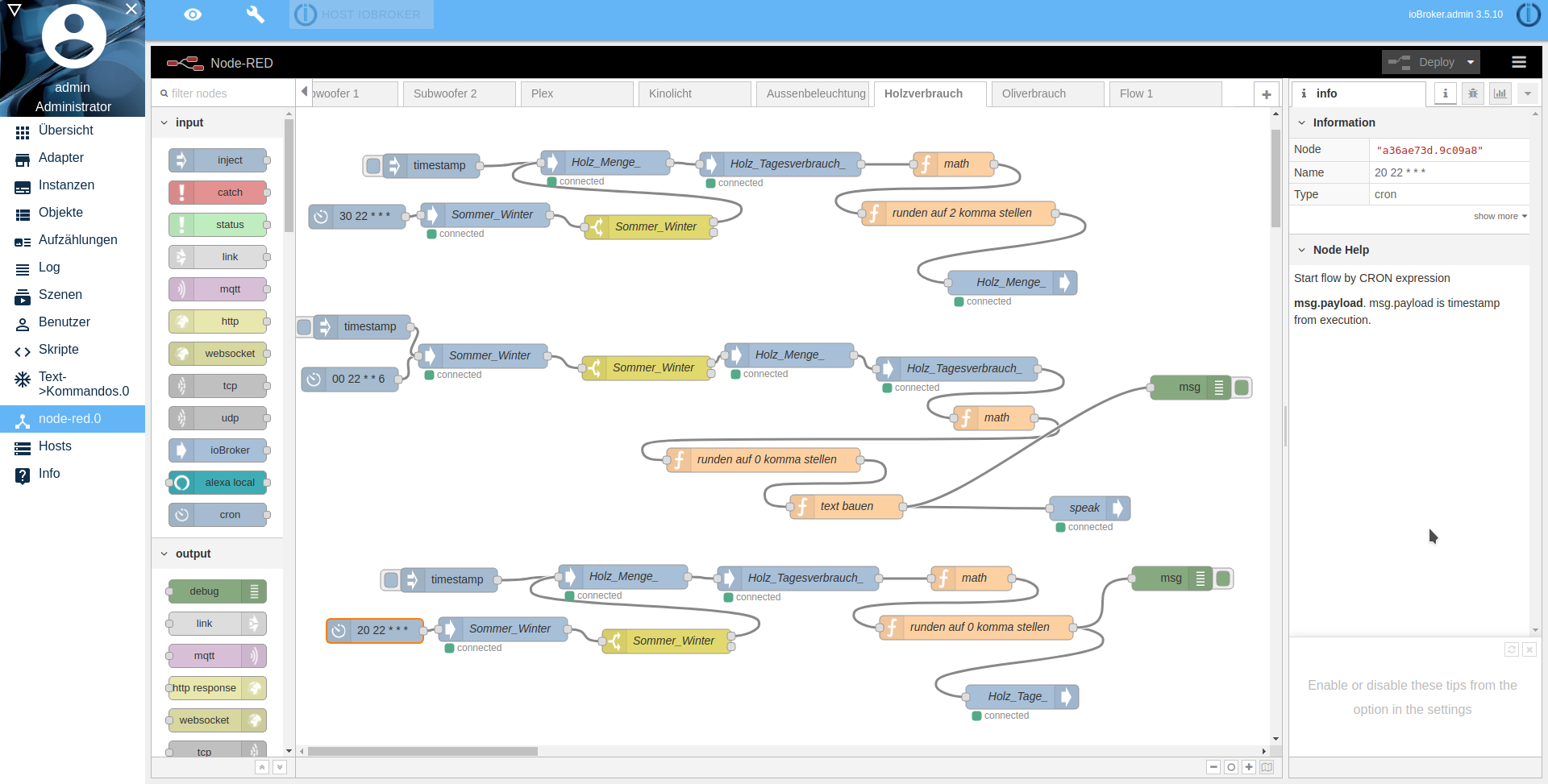

Das Script
Spoiler
[    {
        "id": "4ebcbdcf.aa1cf4",
        "type": "tab",
        "label": "Holzverbrauch",
        "disabled": false,
        "info": ""
    },
    {
        "id": "2ec7c24a.63074e",
        "type": "inject",
        "z": "4ebcbdcf.aa1cf4",
        "name": "",
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "x": 168,
        "y": 165,
        "wires": [
            [
                "8b1070a0.39ed8"
            ]
        ]
    },
    {
        "id": "8b1070a0.39ed8",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Menge_",
        "topic": "Hilfsvariablen.0.Holz_Menge",
        "attrname": "Menge",
        "payloadType": "value",
        "x": 384,
        "y": 161,
        "wires": [
            [
                "733c2f56.baa76"
            ]
        ]
    },
    {
        "id": "733c2f56.baa76",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Tagesverbrauch_",
        "topic": "Hilfsvariablen.0.Holz_Tagesverbrauch",
        "attrname": "verbrauch",
        "payloadType": "value",
        "x": 601,
        "y": 163,
        "wires": [
            [
                "99094c23.75388"
            ]
        ]
    },
    {
        "id": "3b4336ee.f8fc2a",
        "type": "debug",
        "z": "4ebcbdcf.aa1cf4",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "x": 1110,
        "y": 440,
        "wires": []
    },
    {
        "id": "99094c23.75388",
        "type": "function",
        "z": "4ebcbdcf.aa1cf4",
        "name": "math",
        "func": "var math = Number(msg.Menge) - Number(msg.verbrauch);\nmsg.payload = math;\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 816,
        "y": 163,
        "wires": [
            [
                "b821d042.611b9"
            ]
        ]
    },
    {
        "id": "b821d042.611b9",
        "type": "function",
        "z": "4ebcbdcf.aa1cf4",
        "name": "runden auf 2 komma stellen",
        "func": "msg.payload = Math.round(msg.payload * 100) / 100;\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 822,
        "y": 224,
        "wires": [
            [
                "ed536e9a.32a42"
            ]
        ]
    },
    {
        "id": "ed536e9a.32a42",
        "type": "ioBroker out",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Menge_",
        "topic": "Hilfsvariablen.0.Holz_Menge",
        "ack": "false",
        "autoCreate": "false",
        "x": 889,
        "y": 310,
        "wires": []
    },
    {
        "id": "b5efbb1.0e73548",
        "type": "cron",
        "z": "4ebcbdcf.aa1cf4",
        "name": "30 22 * * *",
        "crontab": "30 22 * * *",
        "x": 76,
        "y": 228,
        "wires": [
            [
                "4cecd62.33bb228"
            ]
        ]
    },
    {
        "id": "4cecd62.33bb228",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Sommer_Winter",
        "topic": "Hilfsvariablen.0.Sommer_Winter",
        "attrname": "payload",
        "payloadType": "value",
        "x": 235,
        "y": 226,
        "wires": [
            [
                "9d8547d.e0ee1b8"
            ]
        ]
    },
    {
        "id": "9d8547d.e0ee1b8",
        "type": "switch",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Sommer_Winter",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "true",
                "vt": "str"
            },
            {
                "t": "eq",
                "v": "false",
                "vt": "str"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 438,
        "y": 241,
        "wires": [
            [
                "8b1070a0.39ed8"
            ],
            []
        ]
    },
    {
        "id": "71152b0c.74adc4",
        "type": "function",
        "z": "4ebcbdcf.aa1cf4",
        "name": "math",
        "func": "var math = Number(msg.Menge) / Number(msg.verbrauch);\nmsg.payload = math;\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 866,
        "y": 478,
        "wires": [
            [
                "a2fa00dd.3f8f6"
            ]
        ]
    },
    {
        "id": "a2fa00dd.3f8f6",
        "type": "function",
        "z": "4ebcbdcf.aa1cf4",
        "name": "runden auf 0 komma stellen",
        "func": "msg.payload = Math.round(msg.payload * 1) / 1;\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 580,
        "y": 530,
        "wires": [
            [
                "4717eb1a.0f00f4"
            ]
        ]
    },
    {
        "id": "130fc60d.8ddb7a",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Menge_",
        "topic": "Hilfsvariablen.0.Holz_Menge",
        "attrname": "Menge",
        "payloadType": "value",
        "x": 612,
        "y": 400,
        "wires": [
            [
                "7de652d2.a6cadc"
            ]
        ]
    },
    {
        "id": "7de652d2.a6cadc",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Tagesverbrauch_",
        "topic": "Hilfsvariablen.0.Holz_Tagesverbrauch",
        "attrname": "verbrauch",
        "payloadType": "value",
        "x": 820,
        "y": 417,
        "wires": [
            [
                "71152b0c.74adc4"
            ]
        ]
    },
    {
        "id": "b294585d.ec8108",
        "type": "cron",
        "z": "4ebcbdcf.aa1cf4",
        "name": "00 22 * * 6",
        "crontab": "00 22 * * 6",
        "x": 67,
        "y": 430,
        "wires": [
            [
                "56398eff.ba818"
            ]
        ]
    },
    {
        "id": "56398eff.ba818",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Sommer_Winter",
        "topic": "Hilfsvariablen.0.Sommer_Winter",
        "attrname": "payload",
        "payloadType": "value",
        "x": 232,
        "y": 401,
        "wires": [
            [
                "171af65f.18810a"
            ]
        ]
    },
    {
        "id": "171af65f.18810a",
        "type": "switch",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Sommer_Winter",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "true",
                "vt": "str"
            },
            {
                "t": "eq",
                "v": "false",
                "vt": "str"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 435,
        "y": 416,
        "wires": [
            [
                "130fc60d.8ddb7a"
            ],
            []
        ]
    },
    {
        "id": "bda2f4e1.f94468",
        "type": "ioBroker out",
        "z": "4ebcbdcf.aa1cf4",
        "name": "speak",
        "topic": "alexa2.0.Echo-Devices.90F00818732500U1.Commands.speak",
        "ack": "false",
        "autoCreate": "false",
        "x": 985,
        "y": 590,
        "wires": []
    },
    {
        "id": "8f415bb7.15e688",
        "type": "inject",
        "z": "4ebcbdcf.aa1cf4",
        "name": "",
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "x": 82,
        "y": 365,
        "wires": [
            [
                "56398eff.ba818"
            ]
        ]
    },
    {
        "id": "4717eb1a.0f00f4",
        "type": "function",
        "z": "4ebcbdcf.aa1cf4",
        "name": "text bauen",
        "func": "msg.payload = 'Der Holzvorrat reicht noch ' + msg.payload + ' Tage';\n\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 683,
        "y": 588,
        "wires": [
            [
                "bda2f4e1.f94468",
                "3b4336ee.f8fc2a"
            ]
        ]
    },
    {
        "id": "13835a4f.c8e8a6",
        "type": "inject",
        "z": "4ebcbdcf.aa1cf4",
        "name": "",
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "x": 190,
        "y": 679,
        "wires": [
            [
                "65ff30e0.03e91"
            ]
        ]
    },
    {
        "id": "65ff30e0.03e91",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Menge_",
        "topic": "Hilfsvariablen.0.Holz_Menge",
        "attrname": "Menge",
        "payloadType": "value",
        "x": 406,
        "y": 675,
        "wires": [
            [
                "a017de85.cca92"
            ]
        ]
    },
    {
        "id": "a017de85.cca92",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Tagesverbrauch_",
        "topic": "Hilfsvariablen.0.Holz_Tagesverbrauch",
        "attrname": "verbrauch",
        "payloadType": "value",
        "x": 623,
        "y": 677,
        "wires": [
            [
                "3d56e6b.f35531a"
            ]
        ]
    },
    {
        "id": "3d56e6b.f35531a",
        "type": "function",
        "z": "4ebcbdcf.aa1cf4",
        "name": "math",
        "func": "var math = Number(msg.Menge) / Number(msg.verbrauch);\nmsg.payload = math;\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 838,
        "y": 677,
        "wires": [
            [
                "cb1aed35.a6ffd"
            ]
        ]
    },
    {
        "id": "cb1aed35.a6ffd",
        "type": "function",
        "z": "4ebcbdcf.aa1cf4",
        "name": "runden auf 0 komma stellen",
        "func": "msg.payload = Math.round(msg.payload * 1) / 1;\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 844,
        "y": 738,
        "wires": [
            [
                "100f669a.f26069",
                "da6732b.a6c60d"
            ]
        ]
    },
    {
        "id": "100f669a.f26069",
        "type": "ioBroker out",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Holz_Tage_",
        "topic": "Hilfsvariablen.0.Holz_Tage",
        "ack": "false",
        "autoCreate": "false",
        "x": 901,
        "y": 824,
        "wires": []
    },
    {
        "id": "a36ae73d.9c09a8",
        "type": "cron",
        "z": "4ebcbdcf.aa1cf4",
        "name": "20 22 * * *",
        "crontab": "20 22 * * *",
        "x": 98,
        "y": 742,
        "wires": [
            [
                "f0e1a0a1.90993"
            ]
        ]
    },
    {
        "id": "f0e1a0a1.90993",
        "type": "ioBroker get",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Sommer_Winter",
        "topic": "Hilfsvariablen.0.Sommer_Winter",
        "attrname": "payload",
        "payloadType": "value",
        "x": 257,
        "y": 740,
        "wires": [
            [
                "2e3a263b.32703a"
            ]
        ]
    },
    {
        "id": "2e3a263b.32703a",
        "type": "switch",
        "z": "4ebcbdcf.aa1cf4",
        "name": "Sommer_Winter",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "true",
                "vt": "str"
            },
            {
                "t": "eq",
                "v": "false",
                "vt": "str"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 460,
        "y": 755,
        "wires": [
            [
                "65ff30e0.03e91"
            ],
            []
        ]
    },
    {
        "id": "da6732b.a6c60d",
        "type": "debug",
        "z": "4ebcbdcf.aa1cf4",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "true",
        "x": 1087,
        "y": 677,
        "wires": []
    }
]
Ein Dankeschön nochmal an den Patrick / Sakaschi der das Script bei mir per Teamviewer erstellt hat
